Our Products

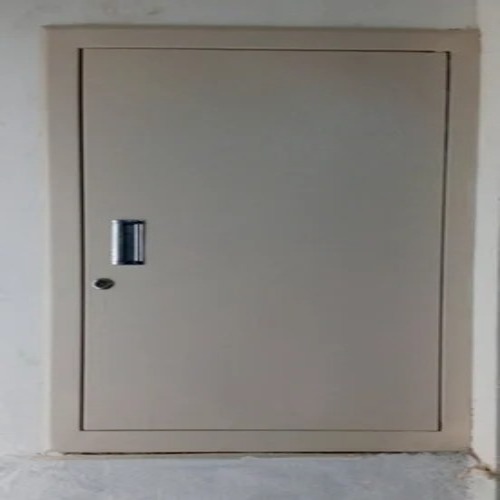

Electric Shaft Door

Electric Shaft Door Specification

Infilling
Galvanized Sheet/Steel Panel

Type
Automatic Electric Shaft Door

Surface Materials
Stainless Steel / Sheet Metal

Application
Elevators, Industrial Lifts, Automated Shafts

Frame Material
Stainless Steel / Mild Steel

Accessories
Door Motor, Control Panel, Roller Set

Function
Automatic Opening/Closing

Open Style
Sliding

Material
Metal (Steel)

Leaf Thickness
1.2 mm (Standard)

Frame Thickness
1.5 mm

Window Type
No Window

Lock handle Position
Integration with Motorized System

Door Type
Shaft Door

Surface Finishing
Polished / Powder Coated

Size
Customizable as per shaft dimensions

Color
Silver Grey

Thickness
1.2 mm

Design
Standard Vertical/ribbed

Safety Features
Electro-mechanical lock, Sensor Protection, Emergency Release

Operating Temperature
-10C to 55C

Drive Type
Electric Motorized Drive

Weight Capacity
Up to 200 kg per door leaf

Noise Level
Less than 55 dB

Customization Options
Available for size, finish, and accessories

Power Supply
220V/50Hz Single Phase

Service Life
Over 100,000 cycles

Mounting Type
Wall Mounted / Recessed Mounting

Control Mode
Microprocessor-based Control Panel

Electric Shaft Door Trade Information

Minimum Order Quantity
5 Square Meters

Supply Ability
100 Square Meters Per Month

Delivery Time
7 Days

About Electric Shaft Door

Electric shaft doors are specialized doors designed to provide enhanced safety and protection for electrical shafts in commercial, residential, and industrial buildings. These doors are engineered to prevent the spread of fire, smoke, and heat, ensuring the safety of electrical systems and reducing the risk of damage.

Key Features:

- Fire Resistance Rating: Electric shaft doors have a fire resistance rating of up to 120 minutes, allowing people to evacuate safely in case of a fire.

- Durable Construction: Made from galvanized steel or GI powder-coated materials, these doors are built to withstand harsh conditions.

- Self-Closing Mechanism: Equipped with self-closing devices, electric shaft doors automatically close after being opened, maintaining the fire-resistant seal.

- Seals and Gaskets: Intumescent seals or smoke seals expand when exposed to heat, preventing the passage of smoke and flames.

Superior Performance and Safety

Engineered with an electric motorized drive and advanced microprocessor-based control panel, the automatic shaft door simplifies operation while maximizing safety. Standard features include a robust electro-mechanical lock, integrated sensors, and an emergency release, ensuring reliable performance and protection in critical environments.

Custom Build for Every Project

With adjustable sizing, finish options, and a variety of accessories, our shaft doors are tailored to suit distinctive shaft dimensions and project requirements. From stainless steel frames to powder-coated finishes, every detail is customizable for both function and aesthetics, ideal for elevators, industrial lifts, and related applications.

FAQ's of Electric Shaft Door:

Q: How is the automatic electric shaft door installed?

A: The shaft door can be wall-mounted or recessed, depending on your project's structural requirements. Installation typically involves securing the frame to the shaft opening, connecting the power supply (220V/50Hz, single phase), and integrating the motorized system with the control panel for seamless operation.

Q: What safety features are incorporated in the shaft door?

A: Safety is assured with an electro-mechanical lock, sensor protection to prevent accidental closure on obstructions, and an emergency release mechanism. These features safeguard users and ensure compliance with industrial safety standards.

Q: When should I consider customizing my shaft door?

A: Customization is recommended when you require specific dimensions, colors, finishes, or additional features such as enhanced accessories. Our doors can be tailored for unique shaft sizes and designed with your choice of galvanized or stainless-steel infilling.

Q: Where can the automatic shaft door be used?

A: This door is suitable for elevator shafts, industrial lifts, automated storage systems, and other similar shaft-based applications, providing automated opening and closing for improved efficiency and safety.

Q: What is the process for maintaining the shaft door?

A: Routine maintenance involves inspecting the motorized drive, cleaning the sensors, checking the electro-mechanical lock, and ensuring track alignment. Scheduled servicing helps achieve the 100,000+ cycle service life.

Q: What are the advantages of a microprocessor-based control panel?

A: A microprocessor-based control panel offers precision control, programmable functions, diagnostic capabilities, and improved system reliability, optimizing the operation and longevity of the automatic shaft door.
